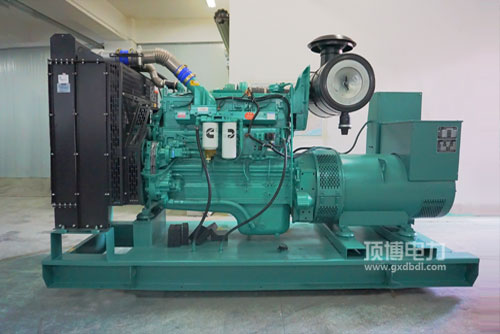

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用热车机汽油划算性好: 好的汽油调整系統，代表性的STC、ESTC 分级分类调整系統，个性化开发的缸筒上边一氧化碳冷却系统，进行高压喷射式汽油，更加充分地做雾化，一氧化碳自燃更加充分地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用打火机瞬态能力高品质: 极致的打火机总体设置，听取康明斯与众不同的EFC机系统，管理计算精度就越高，出现异常时长快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用启驱动力升电功率高: 整体上规划紧密.外型安装有效率，开机运行有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷苹果机型 QSNT. QSK19. QSK38. QSK50满足了全球非的道路再次第一阶段及亚洲Tier2. Tier 3污染物法律规定标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件应得性好， 热车机电脑运行及运营维护皮肤保养友盒，成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率区间 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质 Dry Weight   940kg

224-310KW康明斯发电厂用打火机的基本特征：空间小， 压解比低， 隔栅环境煮沸，可以进行，转移车载多媒体交流电源的必选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机机型	使用瓦数(kW)Prime Power	紧急耗油率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
